Electric Steel Melting Medium Frequency Induction Furnace

Electric Steel Melting Medium Frequency Induction Furnace Featured Image
  • Electric Steel Melting Medium Frequency Induction Furnace
  • Electric Steel Melting Medium Frequency Induction Furnace
  • Electric Steel Melting Medium Frequency Induction Furnace
  • Electric Steel Melting Medium Frequency Induction Furnace
  • Electric Steel Melting Medium Frequency Induction Furnace
  • Electric Steel Melting Medium Frequency Induction Furnace

Short Description:

Overview Quick Details Condition: New Warranty: 1 Year Place of Origin: Fujian, China Brand Name: GEILI Usage: Melting Furnace Voltage: 380V - 660V Certification: ISO 9001:2015 Type: ...


Product Detail

Product Tags

Overview
Quick Details
Condition:
New
Warranty:
1 Year
Place of Origin:
Fujian, China
Brand Name:
GEILI
Usage:
Melting Furnace
Voltage:
380V - 660V
Certification:
ISO 9001:2015
Type:
Induction Furnace, Special Casting
Dimension(L*W*H):
Customized
Product Name:
Electric Steel Melting Medium Frequency Induction Furnace
Specification:
Low Energy Consumption
Application:
Melting Metal
Feature:
High Efficiency
Capacity:
3T - 25T
Color:
Customzied
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
50KW - 5000KW
Weight:
Customized

Product Description

The induction furnaceis the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting, heating or holding of steel, copper, iron, aluminum, zinc, tin, nickel silver and other ferrous or nonferrous metal and alloy material as well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.

Performances and features
1) Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
2) Fast smelting with low production cost; low-pollution and environment-friendly;
3) A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material is easy to replace.
4) Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning is less.
5) Furnace shell using cast aluminum or steel structure, small footprint; furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
6) Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; power supply system diagnostic error function, easy maintenance.

Furnace Usage
熔化炉主要用于熔化钢、铁, copper, aluminum and alloy, is with high melting efficiency, good electricity saving effect, good metal component uniformity, less burning loss, speedy temperature rise, easy control of temperature, is suitable to all kinds of metal melting.

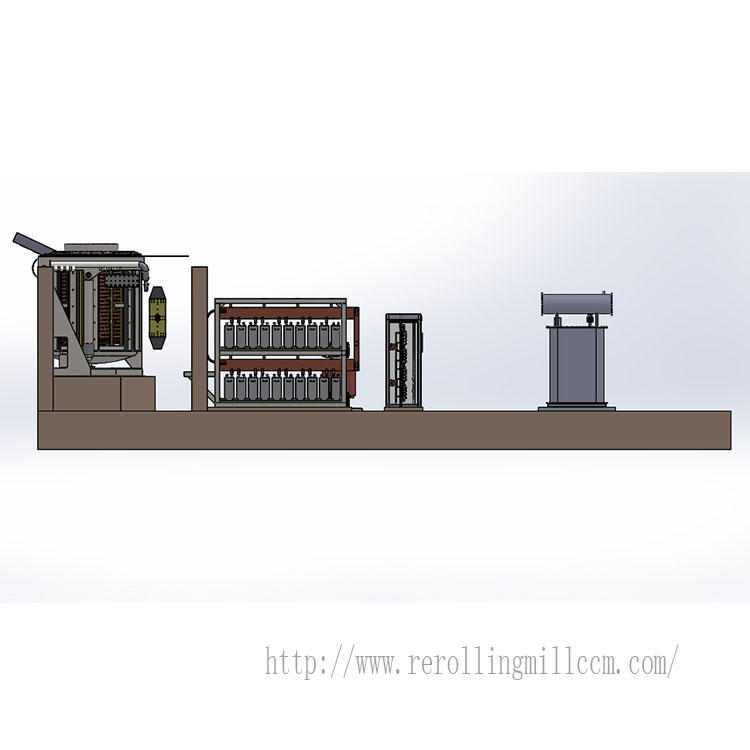

Smelting Furnace constitution
1. Furnace body
2. Medium frequency power supply cabinet
3. Water cooling cable
4. Reduction machine
5. Crucible mold
6. Compensation capacitor rack.
7. Chiller
8.Transformer
9. Installation drawings and specifications


Company Information


FUJIAN PUTIAN GEILI MACHINERY MANUFACTURING CO.,LTD

wasfounded in 1995,formerly known as Xianyou Rolling Mill Manufacturer.In 2001,merged with Xianyou Bangtou Mill Roll Manufacturer.In 2008,wefocused on continuous casting and rolling production line equipment.In 2011,the company reorganized and established FUJIAN PUTIAN GEILI MACHINERY MANUFACTURING CO.,LTD,whichengaged inmetallurgical equipment,mainly in steel-making,continuous casting andcompleterolling production line research and development,design,manufacturing,installationand general contracting services.

Why Choose GEILI?


1. Expert R&D team and Professional service staff
2. Turn-Key service , Perfect after-sales service ,
3. OEM , Reliable Manufacturer
4. Competitive price , Optimum quality product
5. Machines easy operation, Steady performance, Low energy consumption
6. Lower investment , minimize maintenance
7. Products are customized for different requires
8. Adjustable production capability
9. On-time delivery
10. Warranty Period

Customer & Certificate




Services area

1)Offering proposal with best solution and reasonable price for production line as per customers' invest and capacity requirement
2)Providing turn-key service of site planning, machinery designing, manufacturing, installation and commissioning for the full
production lines to meet customers requirement.
3)Technical support. We will arrange engineers on site to install and debug the production lines until the final products are meet to customers' require
4)Perfect after-sales with long-term technical support, such as after-sales adjust the production line, develop new products or improve the equipment

Packing & Shipping
